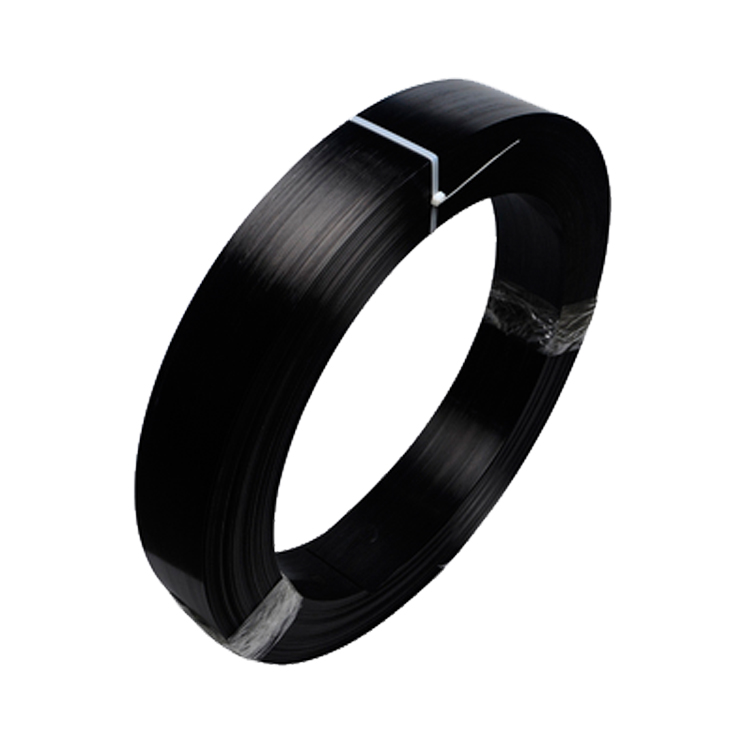

Carbon fiber strip is a type of composite material that consists of very thin strands of carbon fibers. These fibers are known for their high strength-to-weight ratio, rigidity, and durability, making carbon fiber strips ideal for reinforcing structures in various applications. The carbon fibers are usually set in a polymer resin matrix to form a strip that can be used as a reinforcing material.
Feature:
l High Tensile Strength:
Carbon fiber strips have a very high tensile strength, meaning they can withstand a lot of tension or pulling force before breaking. This characteristic is particularly beneficial for reinforcing structures.
l Stiffness and Rigidity:
Despite their lightweight, carbon fiber strips are extremely stiff and rigid, which helps maintain the shape and integrity of the structures they reinforce.
l Corrosion Resistance:
Unlike metals, carbon fiber does not rust or corrode, making it suitable for applications exposed to harsh environments, including marine applications and infrastructure projects.
l Fatigue Resistance:
Carbon fiber strips can withstand repeated loading cycles without significant degradation in performance, making them ideal for applications subjected to cyclical loads, such as bridges and machinery.
Application:
l Structural Reinforcement:
Used in the structural components of aircraft and spacecraft, carbon fiber strips contribute to the strength and durability of the frames while keeping the overall weight minimal.
l Building Reinforcement:
Strengthening older buildings, bridges, and tunnels, especially in seismic retrofit projects to improve earthquake resistance.
l Concrete Reinforcement:
Replacing or supplementing steel rebar in concrete structures to prevent corrosion-related issues and extend the lifespan of the structure.
l Vehicle Frame Construction:
Carbon fiber strips are used in the chassis of high-performance cars to reduce weight and improve speed and fuel efficiency.
Specification:
Type | Code | Thickness (mm) | Width (mm) | Length (m) | Tensile Strength (MPa) | Elastic Modulus (GPa) | Elongation (%) |
HS Series | KF309HS/1.2-100 | 1.2 | 100 | 50/100 | ≥2800 | ≥160 | ≥1.6 |
KF309HS/1.4-50 KF309HS/1.4-100 | 1.4 | 50/100 | |||||
KF309HS/2.0-50 KF309HS/2.0-100 | 2.0 | 50/100 | |||||
KF309HS/3.0-50 | 3.0 | 50 | |||||
KF309HS/1.2-100 | 1.2 | 100 | |||||
HM Series | KF309HM/1.4-50 KF309HM/1.4-100 | 1.4 | 50/100 | 50/100 | ≥2800 | ≥200 | ≥1.3 |
KF309HM/2.0-50 KF309HM/2.0-100 | 2.0 | 50/100 | |||||
KF309HM/3.0-50 | 3.0 | 50 | |||||
Customized Production Available | |||||||
*Specific products could be made according to customers’requirements.
