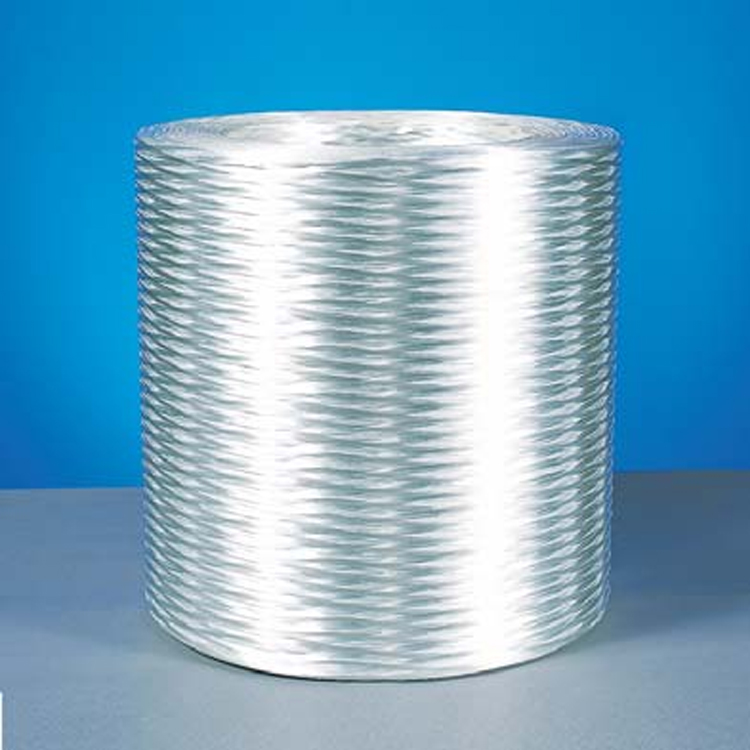

328 Direct Roving is based on E6 glass formulation, coated with a silane-based sizing.It is specifically designed to reinforce both amine and anhydride cured epoxy resins.328 is designed to manufacture UD, biaxial, and multiaxial woven fabrics.
Application:
328 is suitable for use in vacuum-assisted resin infusion processes to manufacture largewind blades.
Features:
l Good compatibility with epoxy resin
l Fast, uniform and complete wet-outand wet-through
l Good abrasion resistance,low fuzz
l Excellent mechanical properties
l Excellent acid corrosion resistance
Idenfification:
Idenfification | ||||
Glass Type | E6 | |||
Type of Size | Silane | |||
Size Code | 328 | |||
Linear Density tex | 300 | 600 | 1200 | 2400 |
Filament Diamter (μm) | 13 | 17 | 17 | 17 |
Technical Parameters:
Linear Density (%) | Moisture Content (%) | Size Content (%) | Breakage Strength (N/Tex) |
ISO1889 | ISO3344 | ISO1887 | ISO3341 |
± 5 | ≤0.10 | 0.45-0.70 | ≥0.40 |
Mechanical properties:
Mechanical Properties | Unit | Value | Resin | Method |
Tensile Strength | MPa | 2754 | Epoxy | ASTM D2343 |
Tensile Modulus | MPa | 81154 | Epoxy | ASTM D2343 |
Shear Strength | MPa | 69 | Epoxy | ASTM D2344 |
Shear Strength Retention (72 hr boiling) | % | 95 | Epoxy | / |
*The above date are actual experimental values for E6DR17-1200-306A and for reference only.
