Description:

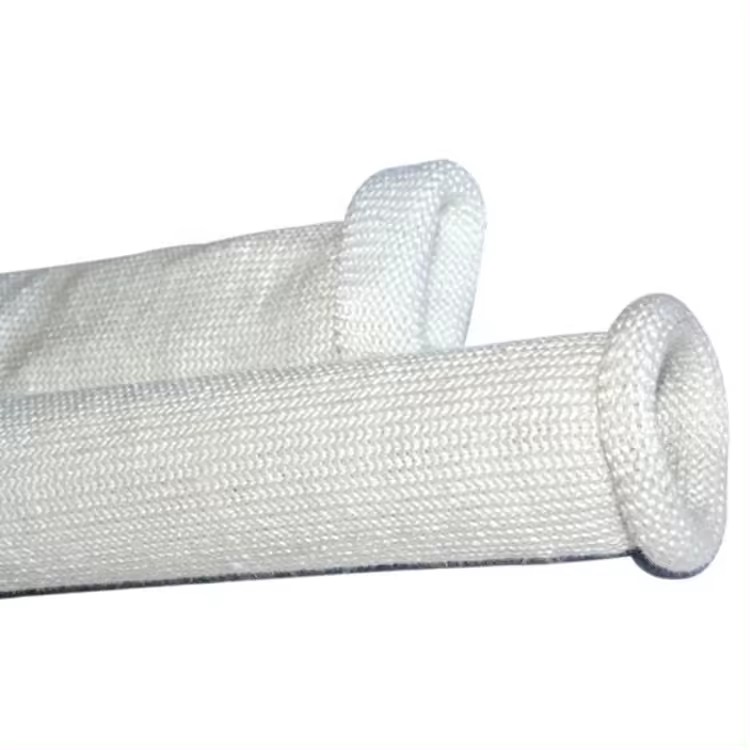

Fiberglass knitted sleeve is fabricated from high quality texturized fiberglass yarns. Provide thermal insulation and fire proof protection to industrial wires, cables and hoses(hydraulics) from high temperature and occasional flame, also affording personal protection. It can be continuous exposure to high temperature of 550℃. Fiberglass knitted sleeve is less dense than the same size braided sleeve, but can provide similar spacing protection. It is highly flexible and conformable, allowing ease of assembly over awkward shapes.
Features:
Product Features | |
Size/inner diameter | 13mm-150mm |
Colour | White |
Working temperature | ≤550℃ |
Character | Excellent heat&flame resistant. Thermal insulation. Highly flexible and conformable |
Specification:
Part No. | Inner Dia(mm) | Wall Thickness(mm) | Roll Length(mtr) |
FG407K013 | 13 | 1.5/3 | 30 |
FG407K016 | 16 | 1.5/3 | 30 |
FG407K019 | 19 | 1.5/3 | 30 |
FG407K022 | 22 | 1.5/3 | 30 |
FG407K025 | 25 | 1.5/3 | 30 |
FG407K032 | 32 | 1.5/3 | 30 |
FG407K035 | 35 | 1.5/3 | 30 |
FG407K038 | 38 | 1.5/3 | 30 |
FG407K044 | 44 | 1.5/3 | 30 |
FG407K048 | 48 | 1.5/3 | 30 |
FG407K051 | 51 | 1.5/3 | 30 |
FG407K057 | 57 | 1.5/3 | 30 |
FG407K064 | 64 | 1.5/3 | 30 |
FG407K070 | 070 | 1.5/3 | 30 |
FG407K076 | 076 | 1.5/3 | 30 |
FG407K083 | 083 | 1.5/3 | 30 |
FG407K089 | 089 | 1.5/3 | 30 |
FG407K095 | 096 | 1.5/3 | 30 |
FG407K102 | 102 | 1.5/3 | 30 |
FG407K114 | 114 | 1.5/3 | 30 |
FG407K127 | 127 | 1.5/3 | 30 |
FG407K152 | 152 | 1.5/3 | 30 |
