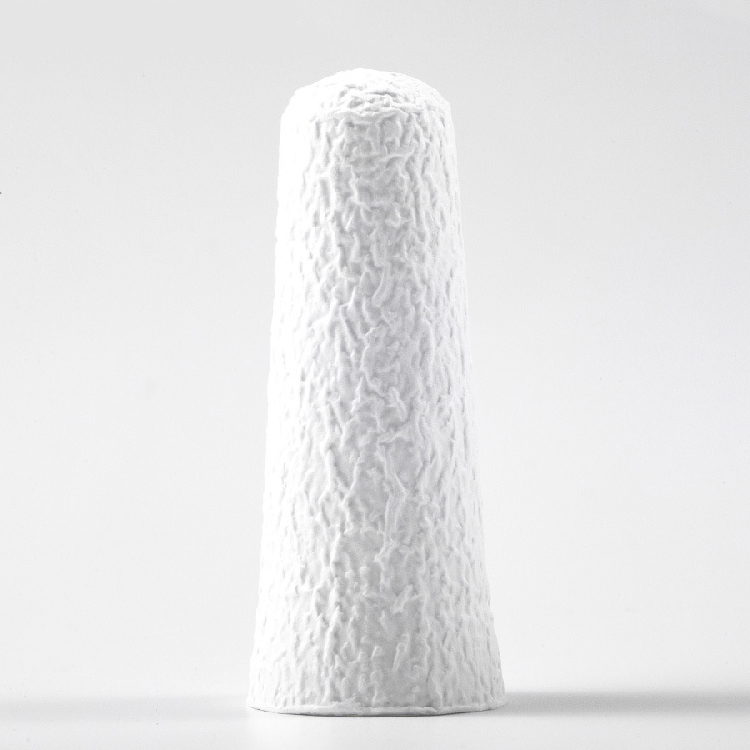

Quartz Fiber Filter Cartridge is made by high purity fine quartz fiber. Quartz Fiber Filter Cartridge can be applied up to 900°C high temperature, and its conical shape matched much better with opium pipe. With the property of wear resistance, quartz fiber filter cartridge is able to avoid negative values during gas sampling process, suitable well for sampling of stationary source, solvent extration and high temperature digestion.
Application:
Quartz Fiber Filter Cartridge is also used for collection of heavy metal, sulphate and toxicant in the exhaust fumes, such as Pd, Cd, As, PAH, BaP, Dioxin, Asphalt smoke, etc..
Specification:
Hitex | Quartz Fiber Filter Cartridge |
H | QFC |
Item No. | H/ QFCΦ32X120mm | H/ QFCΦ25X90mm | H/ QFCΦ28X70mm | ||||
Weight | 2.0±0.2g | 1.2±0.1g | 1.0±0.1g | ||||
Applicating Temperature | |||||||
Background Values | SiO2 | Fe2O3 | Al2O3 | CaO | MgO | K2O | Na2O |
57.12 | 0.36 | 14.66 | 16.53 | 3.36 | 0.16 | 0.36 | |
Drag force (air flow rate:20L/nin) | 14-16mmHg | 16-18mmHg | 18-20mmHg | ||||
RWL | The ratio of weight loss is not more than 0.2%, baking from 60 minutes to 120 minutes at the actual temperature | ||||||
Collection efficency | (Oil Mist:to0.3μm Oil Mist Particle) | ||||||
*Specific products could be made according to customers’requirements.
