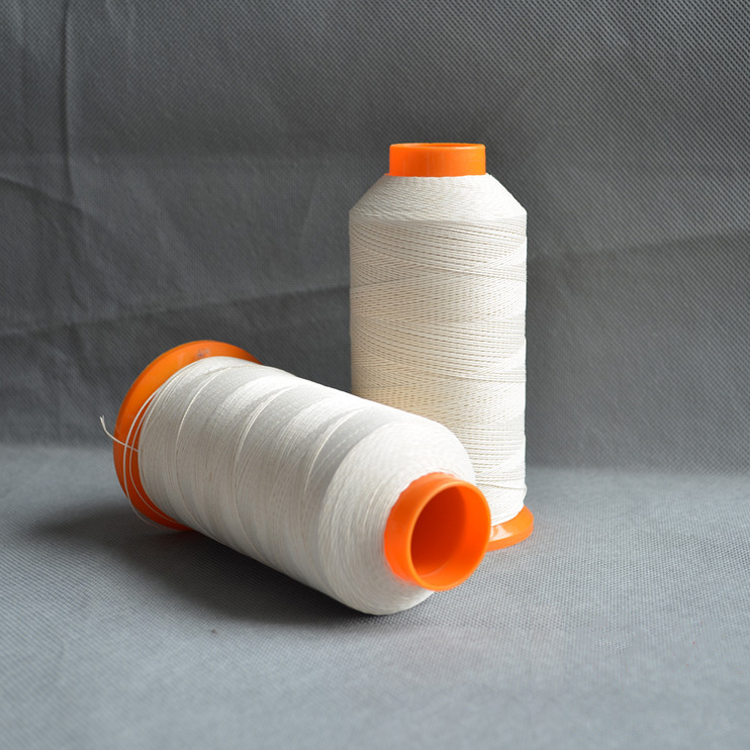

Quartz Fiber Sewing Thread is made from high purity, extremely fine continuous filaments of pure fused quartz which is capable of exposure to 1070°C. Fiber composition is 99.95% SIO2 Exclusive of binder.
Application:
It has excellent abration performance and soft characteristic, widely used as high temperature filter material and sew up braided fabrics.
Specification:
Hitex | Quartz Fiber Sewing Thread | Type |
H | QST/ QSTP | Uncoated PTFE coated |
Item No. | Diameter (mm) | Liner Desnsity (Tex) | Breaking Strength (daN) | Binder Content (%) |
H/QST12 | 0.36 | 133(33X2X2 Z160) | 8 | 0.5 |
H/QST18 | 0.43 | 205(33X2X2 Z160) | 13 | |
H/QST24 | 0.51 | 272(33X2X4 Z160) | 18 | |
H/QSTP12 | 0.36 | 168(33X2X2 Z160) | 6.8 | PTFE:20% |
H/QSTP18 | 0.43 | 250(33X2X3 Z160) | 11.2 | |
H/QSTP24 | 0.51 | 340(33X2X4 Z160) | 15.6 |
*Specific products could be made according to customers’requirements.
